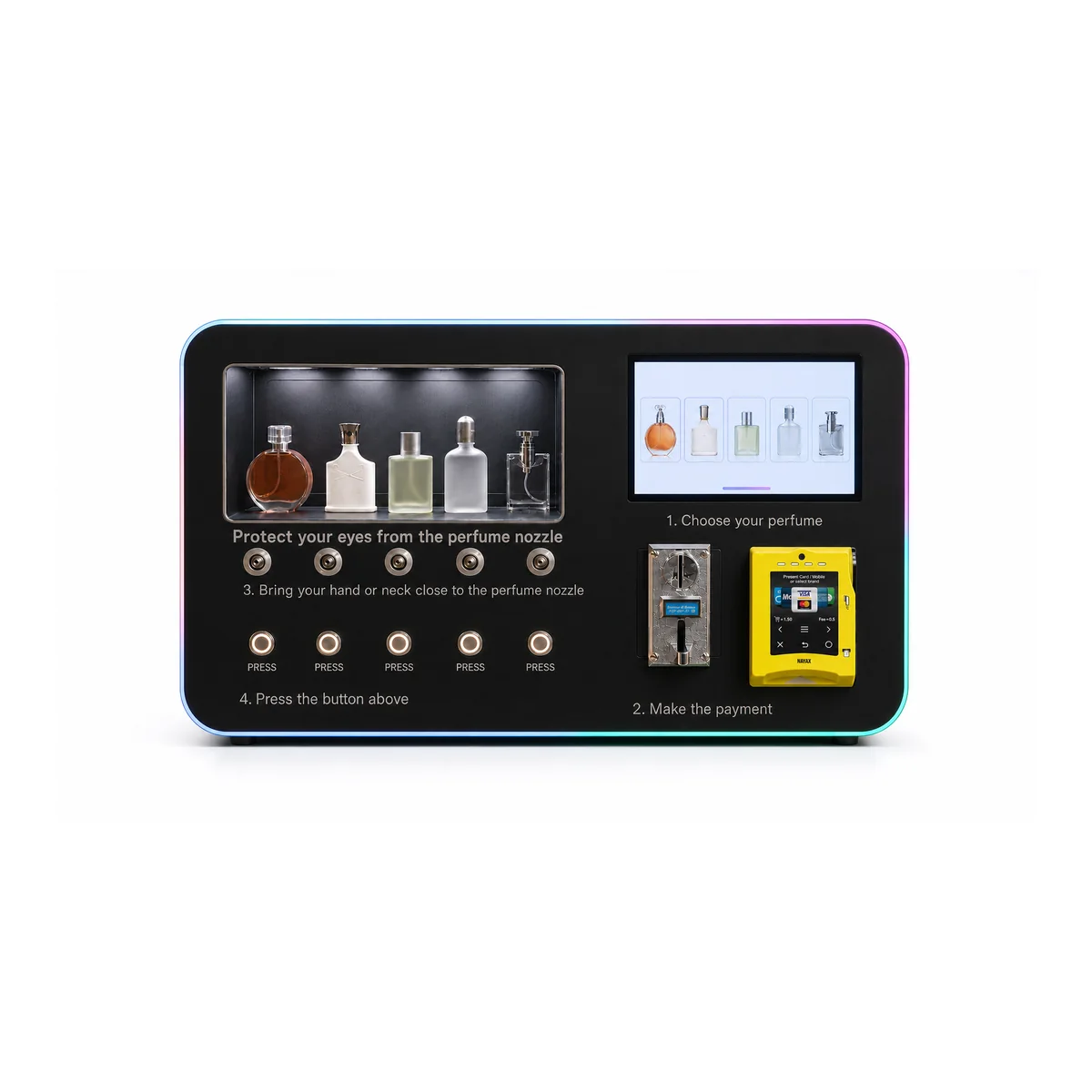

Model YL01
Wall-Mounted Perfume Vending Machine
A compact five-selection fragrance vending and sampling unit with a 10.1-inch customer display and configurable payment and network options.
- Five perfume selections
- Five 100 ml bottle positions
- 100-240 VAC, 50/60 Hz
Customer flow
Select, pay and activate the chosen fragrance
The verified YL01 platform supports five fragrances and can be configured for sampling, purchase, or a combined purchase-and-trial workflow. Final dose timing, transaction rules, language, payment hardware and software service are defined for the operator.
Five selections
The exact source lists five SKUs and five 100 ml bottle positions for the YL01 cabinet.
Flexible operating modes
The manual lists trial-only, purchase-only and purchase-and-trial modes, selected according to the business model.
Customer display
A standard 10.1-inch screen presents fragrance choices and the customer transaction flow.
Payment configuration
Coin and credit-card payment are listed. Reader, currency, acquirer and local compatibility are confirmed before production.
Connected or offline
The software can use online cloud lane data or offline local lane data, subject to the selected service scope.
Compact installation
The wall-mounted form saves floor area, but the wall structure, fixings, power route and installation height require a site assessment.
Technical overview
YL01 reference specifications
- Installation type
- Wall-mounted
- Dimensions (L × W × H)
- 750 × 240 × 440 mm
- Weight
- 25 kg
- Color
- Black
- Selections
- 5 SKUs
- Bottle layout
- 5 × 100 ml bottles
- Power supply
- 100-240 VAC, 50/60 Hz
- Rated power
- 40 W
- Cabinet material
- Painted sheet metal
- Display
- Standard 10.1-inch screen
- Network
- Wi-Fi / 2G / 4G listed
- Payment / control
- Coin and credit card; PC/mobile control listed
Specifications are reference data for the exact YL01 source configuration. Payment reader, network service, cloud access, perfume dose, fragrances, software mode, branding, mounting hardware and trade terms are confirmed in the quotation and contract.
Installation planning
Treat mounting and fragrance operation as site-specific work
Confirm structural support, fixings, installation height, electrical supply, safe spray positioning, fragrance refill procedure, ventilation, customer instructions, local cosmetic rules and payment compliance before installation.
Configure the YL01 for your venue
Tell us the destination country, wall conditions, fragrance program, operating mode, payment requirements and expected quantity. We will prepare a project-specific configuration and quotation.
