Model MACIN8C-300-90-00

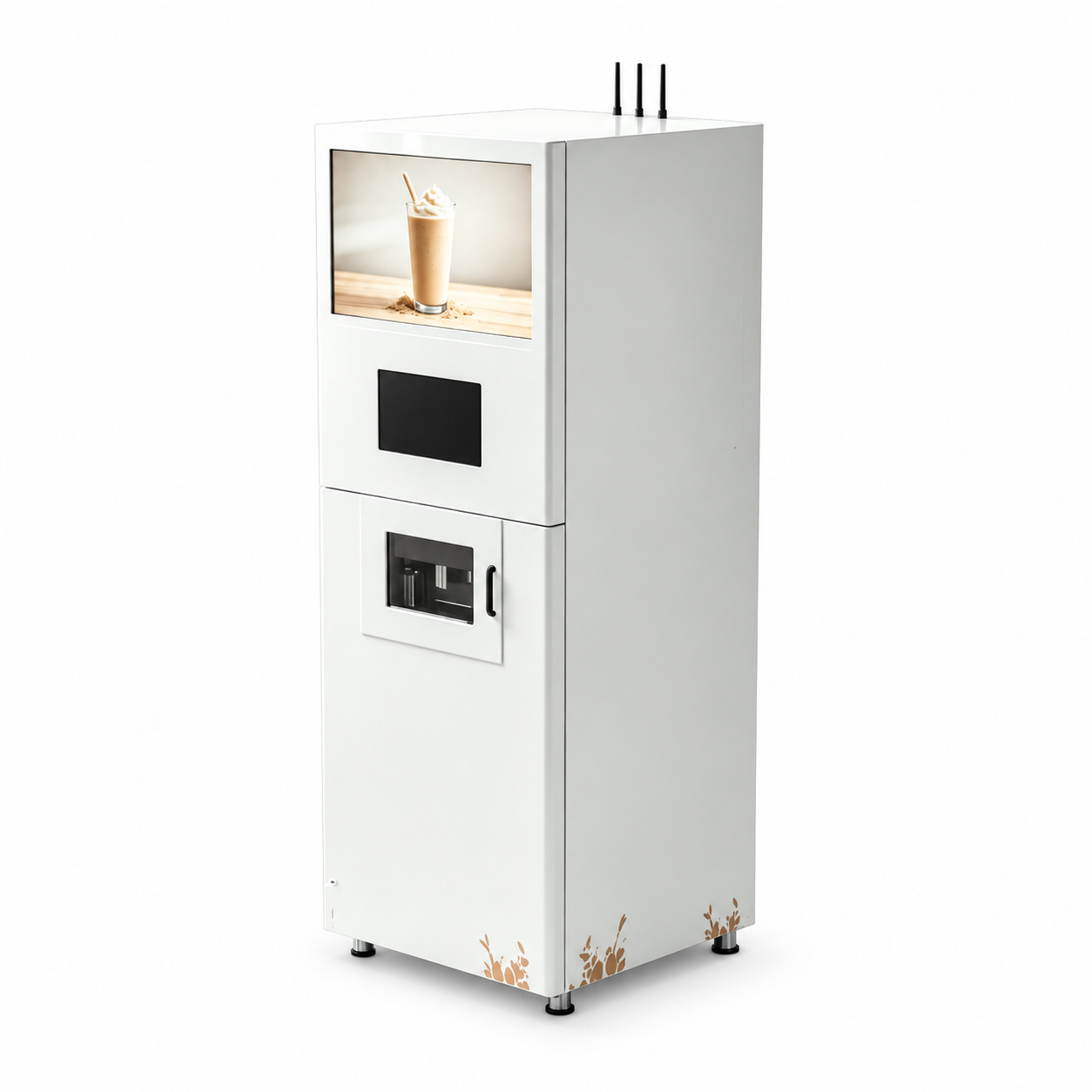

Protein Powder Drink Vending Machine
A freestanding automated drink platform with eight powder canisters, four mixers, dual displays and configurable payment options.
- Eight adjustable powder canisters
- Four mixing positions
- Reference output up to 50 cups per hour
Drink configuration
A multi-canister platform for configurable powdered beverages
The exact-model technical graphic lists eight adjustable instant-powder canisters feeding four mixers, a cup-handling system, hot-water system, touch operation and an MDB payment interface. Final recipes, ingredients, allergen controls, serving size and cleaning program are established for the operator and destination market.
Eight powder canisters
The source lists eight adjustable 3.8 L canisters, allowing the ingredient plan to be configured around the intended beverage menu.
Four mixers
Four mixing positions are listed. Recipe sequence, powder dose, water volume and maintenance schedule require commissioning.
Dual-display interface
A 27-inch advertising screen and a 15.6-inch industrial capacitive touch display are listed for promotion and ordering.
Cup-handling system
The reference configuration lists 300 cups across four buckets with 80 mm or 90 mm cup-diameter options.
Flexible water supply
The source lists either two 18.9 L water containers or a mains-water connection, subject to site plumbing and local requirements.
Payment and data options
MDB, Android and EVA-DTS are listed together with optional RFID, cash, coin, Nayax and electronic-payment configurations.
Technical overview
MACIN8C-300-90-00 reference specifications
- Installation type
- Freestanding
- Reference dimensions
- H1845 × W664 × D720 mm; final drawing required
- Rated power
- 2200 W
- Powder system
- 8 × 3.8 L adjustable canisters
- Mixing system
- Four mixers listed
- Displays
- 27-inch advertising + 15.6-inch touch display
- Cup storage
- 300 cups across four buckets
- Cup diameter
- 80 mm or 90 mm
- Reference output
- Up to 50 cups/hour, recipe-dependent
- Water supply
- 2 × 18.9 L containers or mains water
- Operating environment
- 5-40 °C; maximum humidity 90%
- Control / payment
- Android, EVA-DTS and MDB listed
Specifications are reference data for the exact-model technical graphic. Final cabinet drawing and weight, recipes, ingredients, allergen controls, cup height, cooling option, water treatment, payment hardware, software services, cleaning process, food-contact compliance, certification, delivery and trade terms are confirmed in the quotation and contract.
Food-operation planning
Validate recipes, allergens and cleaning before deployment
Powder flow, mixing behavior and rinse requirements vary by ingredient. The final project should validate the actual powders, serving sizes, water quality, cup fit, cross-contact controls, allergen labeling, cleaning frequency, waste handling and local food-service obligations before public operation.
Configure the MACIN8C-300-90-00 for your venue
Tell us the destination country, drink menu, ingredients, cup format, water plan, payment requirements and expected quantity. We will prepare a project-specific configuration and quotation.
