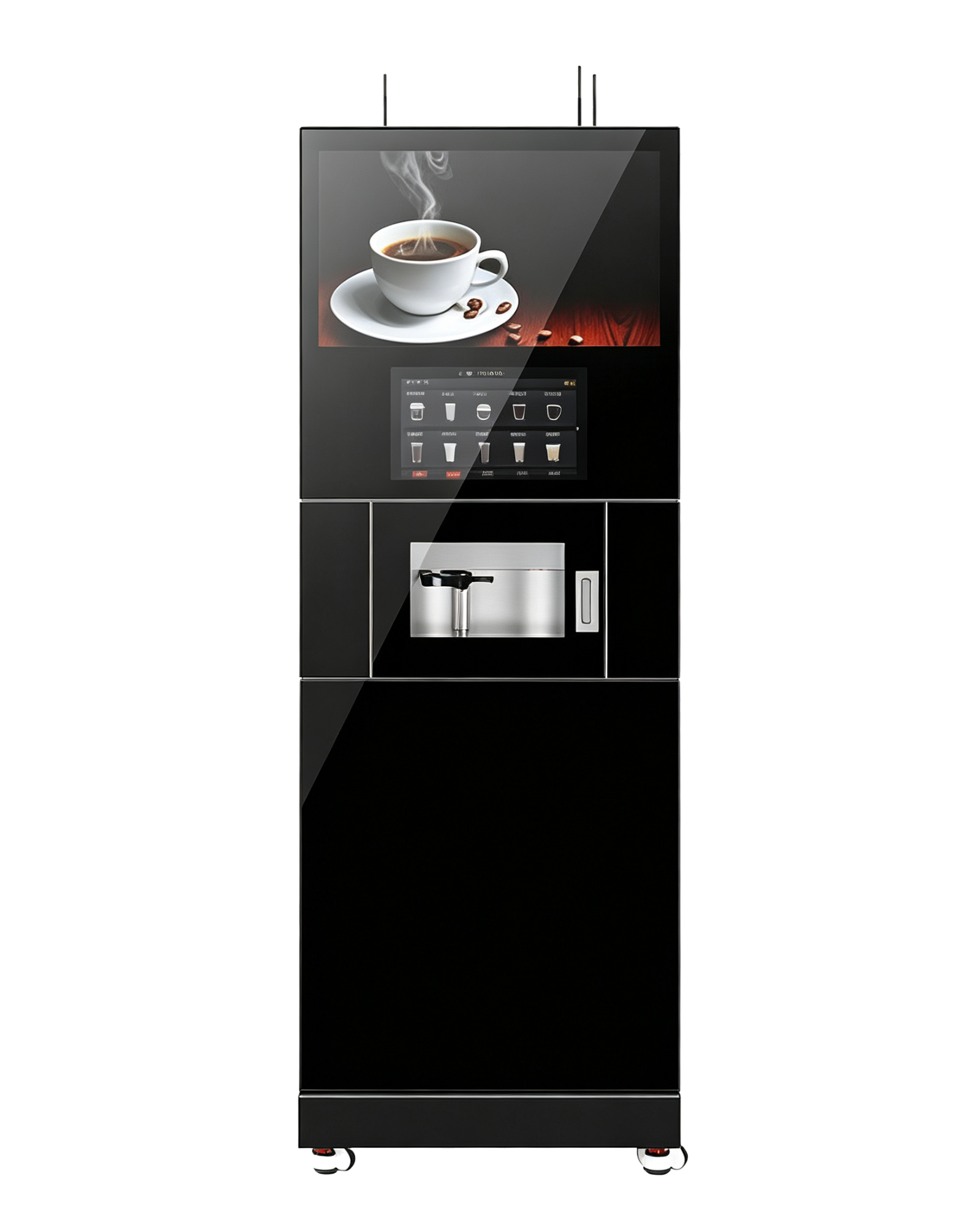

Model S7C-300-80/90-00
Freestanding Coffee Vending Machine
A high-capacity automatic coffee and hot-drink platform with integrated cup storage, ingredient canisters and dual customer-facing displays.
- 300-cup reference capacity
- 15.6-inch touch screen plus 27-inch advertising display
- Water-tank or mains-water configuration
Configuration
A freestanding beverage platform for high-capacity service
The verified S7C-300-80/90-00 configuration combines bean-to-cup coffee, soluble ingredients, cup storage and two display areas. Final recipes, payment hardware, language, water supply and software scope are selected for the destination site.
Cup management
Four cup buckets hold 300 cups with an 80 or 90 mm diameter; supported cup height is 70-135 mm.
Ingredient system
The source lists one 2 kg bean canister, six adjustable 3.8 L instant canisters, one espresso brewer, one tea brewer and three mixers.
Customer displays
A 15.6-inch touch screen is paired with a 27-inch multimedia advertising screen on this exact cabinet version.
Water configuration
The machine can be configured with two 18.9 L tanks or a tap-water connection, subject to site pressure and water-quality requirements.
Payment integration
An MDB interface is listed. RFID, cash, coin, Nayax and electronic-payment options must be confirmed for the country and selected hardware.
Site planning
Confirm electrical supply, water route, drainage and waste handling, service clearances, operating temperature and replenishment access.
Technical overview
S7C-300-80/90-00 reference specifications
- Installation type
- Freestanding
- Dimensions (H × W × D)
- 1830 × 664 × 700 mm
- Power supply
- AC 220 V / 50 Hz
- Power / fuse
- 2200 W / 15 A
- Net weight
- 180 kg
- Cup capacity
- 300 cups in four buckets; 80 or 90 mm diameter
- Reference output
- 50 cups/hour
- Displays
- 15.6-inch touch screen + 27-inch multimedia screen
- Bean / instant storage
- 1 × 2 kg bean canister; 6 × 3.8 L instant canisters
- Water supply
- 2 × 18.9 L tanks or tap water; inlet pressure 0.5-7 bar
- Waste capacity
- Waste water >12 L; coffee residue >15 L
- System / payment interface
- Android / MDB
Specifications are reference data for the exact 2026 catalog configuration. Final recipes, optional modules, payment devices, software services, utilities and trade terms are confirmed in the quotation and contract.
Deployment planning
Match the beverage program to the site
Before ordering, confirm recipes, ingredients, cup format, water treatment, cleaning process, waste handling, electrical capacity, network availability and local foodservice requirements.
Configure the S7C-300 for your location
Tell us the destination country, site utilities, beverage menu, cup format, payment requirements and expected quantity. We will prepare a project-specific configuration and quotation.
