Model C13032452A004 · manual-verified configuration

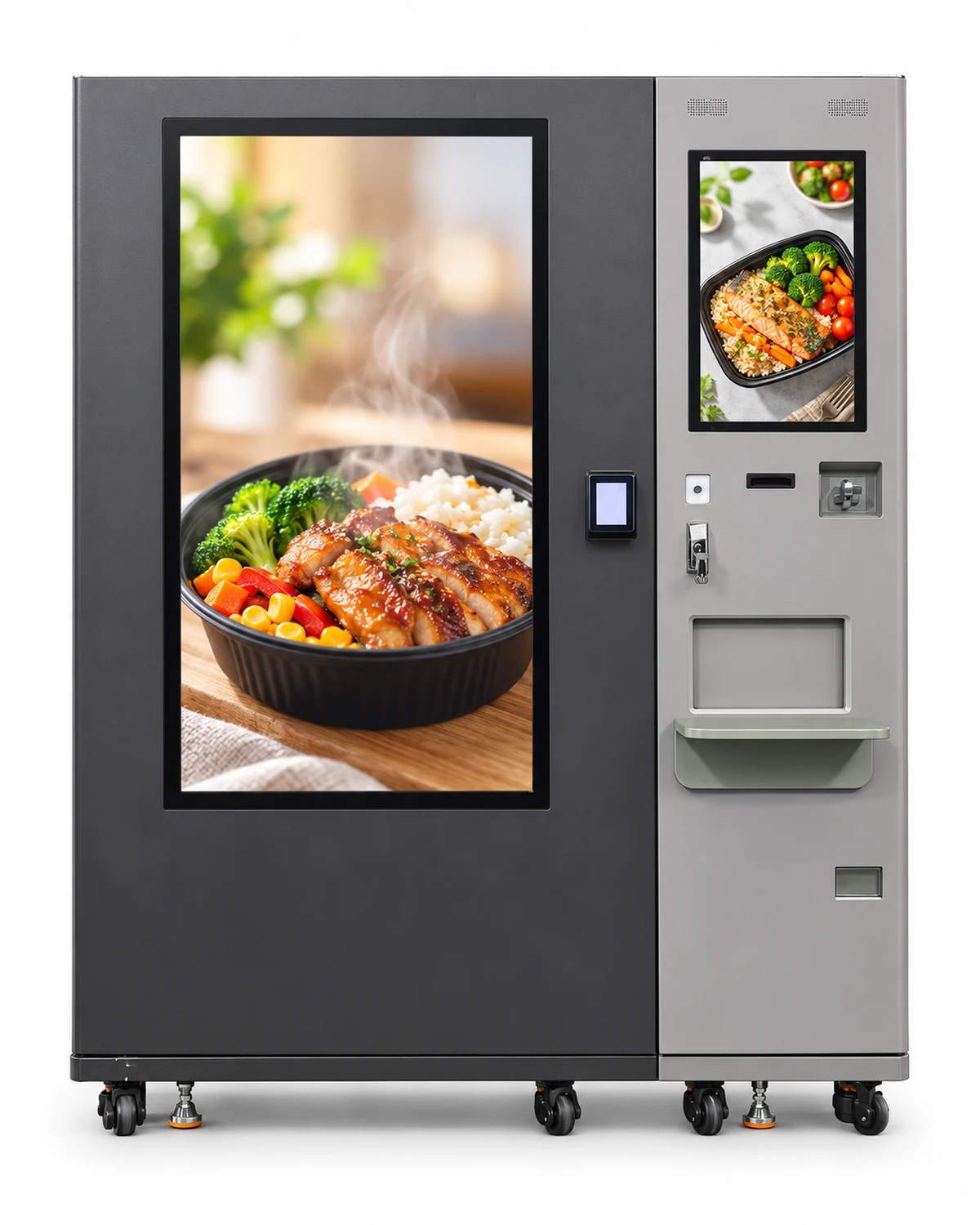

C13032452A004 Frozen Microwave Meal Vending Machine
A frozen packaged-meal vending platform with XY-axis retrieval, integrated microwave heating, cutlery dispensing, connected management and a mixed-payment hardware layout.
- 88 frozen meal lanes
- 1145 L frozen compartment
- Scan, IC card, coin and banknote hardware listed
Frozen storage to heated pickup
A mixed-payment configuration for automated frozen meal service
Model C13032452A004 combines frozen meal inventory, XY-axis retrieval, microwave heating and cutlery dispensing. Its manual and matching photo group list scan, IC-card, coin and banknote interfaces; the accepted currencies and acquiring services are confirmed for each market.
88 meal lanes
A 22-level × 4-lane layout provides 88 fixed meal positions for compatible packaged meals.
Frozen inventory
The 1145 L compartment has a listed adjustable range from -18 °C to 0 °C.
XY-axis retrieval
An automated gripper retrieves the selected pack and transfers it to the heating module.
Integrated microwave heating
The manual lists 4500 W heating power and a 2–4 minute product-matched cycle.
Cutlery dispensing
Two dedicated lanes hold up to 32 approved cutlery packs each, for a listed total of 64 packs.
Payment and operations
Mixed payment hardware and SaaS product, inventory, order and device-management functions are listed; final service scope is project-specific.
Customer journey
A clear five-step purchase and pickup flow
Select a meal
Browse the customer screen and choose an available packaged meal.
Choose service
Confirm whether heating and a cutlery pack are required.
Complete payment
Use an enabled scan, card or cash-interface method for the destination.
Automatic handling
The XY system retrieves the meal and applies its configured heating cycle.
Collect the order
Take the heated meal and selected cutlery from the pickup area.
Technical overview
C13032452A004 reference specifications
- Model
- C13032452A004
- Machine dimensions
- 1600 × 1080 × 1917 mm (L × W × H)
- Frozen compartment
- 1145 L
- Storage temperature
- -18 °C to 0 °C; adjustable
- Meal lanes
- 22 levels × 4 lanes; 88 total
- Cutlery capacity
- 2 lanes; 32 packs per lane; 64 packs total
- Microwave heating power
- 4500 W
- Rated total power
- 6000 W
- Power supply
- AC 220 V / 50 Hz; grounded supply rated at least 30 A
- Refrigerant
- R290; dual compressors; 100 g × 2 listed charge
- Payment interfaces
- Scan, IC card, coin, banknote and change-return hardware listed
- Heating cycle
- 2–4 minutes; matched to the configured meal pack
Specifications come from the model C13032452A004 V2.0 manual. Final meal-pack dimensions, heating program, accepted currencies, payment/acquiring system, software service, electrical standard, refrigeration service rules, exterior graphics, certification, delivery and trade terms are confirmed in the quotation and contract.
Deployment planning
Validate meal packaging, currency handling and site utilities
Before production, confirm the approved meal pack, frozen transport and replenishment routine, heating settings, cashbox and refund procedure, cleaning records, operator training, electrical capacity, ventilation clearances and all destination-market food-service and payment obligations. Listed temperatures and cycle times are configuration references, not shelf-life, food-safety or regulatory-approval claims.
Configure C13032452A004 for your market
Tell us the destination country, venue, meal-pack format, target inventory, heating requirements, payment mix and expected quantity. We will prepare a project-specific configuration and quotation.
