Model MG330A · reference configuration

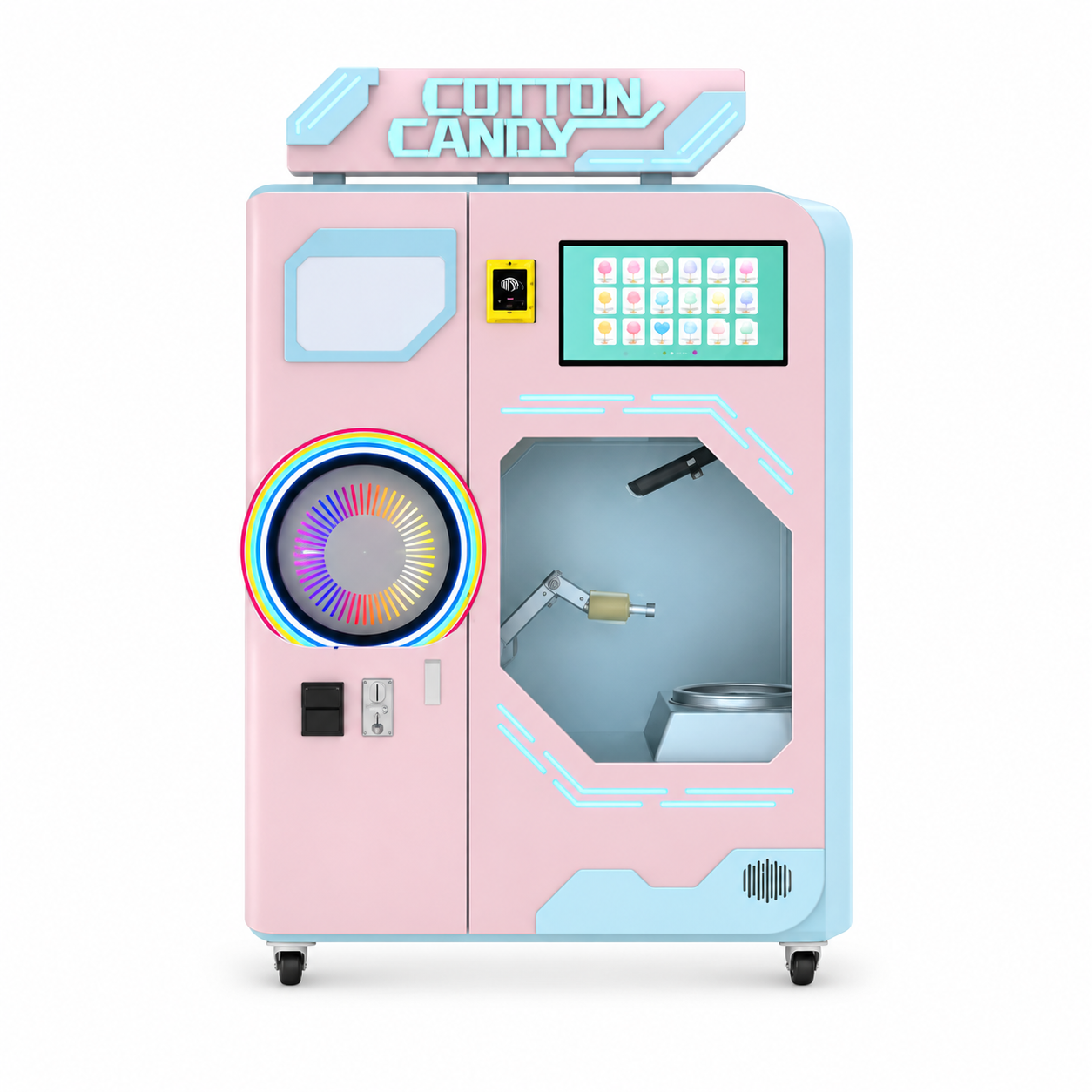

Automatic Cotton Candy Vending Machine
A freestanding interactive vending platform that forms patterned cotton candy inside a visible production chamber and delivers it through an automatic collection door.
- 60 listed pattern choices
- Four-flavor reference system
- 70-130 second reference cycle
Interactive confectionery
Visible automated forming with a broad pattern menu
The MG330A reference configuration combines an ordering screen, automated forming system, visible chamber and collection door. Final pattern library, flavors, consumables, payment devices, software and exterior presentation are defined for the project.
60-pattern reference library
The source lists 60 pattern choices. The final on-screen library and local-language names are confirmed before production.
Four-flavor system
The reference configuration supports four flavors that can be assigned to the agreed menu and consumable supply plan.
Visible production chamber
The enclosed front chamber lets customers watch the robotic forming process while keeping the working area separated.
Automated forming
A robotic arm, sugar storage and heated forming assembly work together for the selected cotton-candy design.
Customer collection
The cabinet guides the finished product to an automatic delivery area for collection after the cycle ends.
Remote operating tools
Listed backend functions cover remote operation, scheduled power, sales and material visibility, alerts and parameter settings.
Technical overview
MG330A reference specifications
- Model
- MG330A
- Installation type
- Freestanding automatic cotton candy vending machine
- Machine dimensions
- 1332 × 671 × 2001 mm
- Machine weight
- 210 kg reference
- Power supply
- AC 220 V or 110 V; destination configuration to be confirmed
- Maximum power
- 2700 W
- Pattern count
- 60 listed patterns
- Flavor count
- Four in the reference configuration
- Reference cycle
- 70-130 seconds, pattern and operating conditions dependent
- Reference environment
- 0-50 °C; final site conditions to be reviewed
- Customer modules
- Operation screen, visible chamber, configurable payment area and automatic door
- Backend functions
- Remote operation, scheduling, sales and material view, alerts and parameter settings
Specifications are reference data for the MG330A configuration. Final recipes, food-contact parts, payment devices, software service, warranty, branding and trade terms are confirmed in the quotation and contract.
Deployment planning
Confirm consumables, cleaning and venue safety
Before installation, confirm sugar and flavor specifications, stick supply, recipe and allergen controls, cleaning frequency, heat and ventilation management, staff procedures, electrical capacity, placement clearances and all destination-market food-service and public-venue requirements.
Configure the MG330A for your venue
Tell us the destination country, location type, pattern and flavor plan, expected volume, payment requirements and order quantity. We will prepare a project-specific configuration and quotation.
