Model VB1

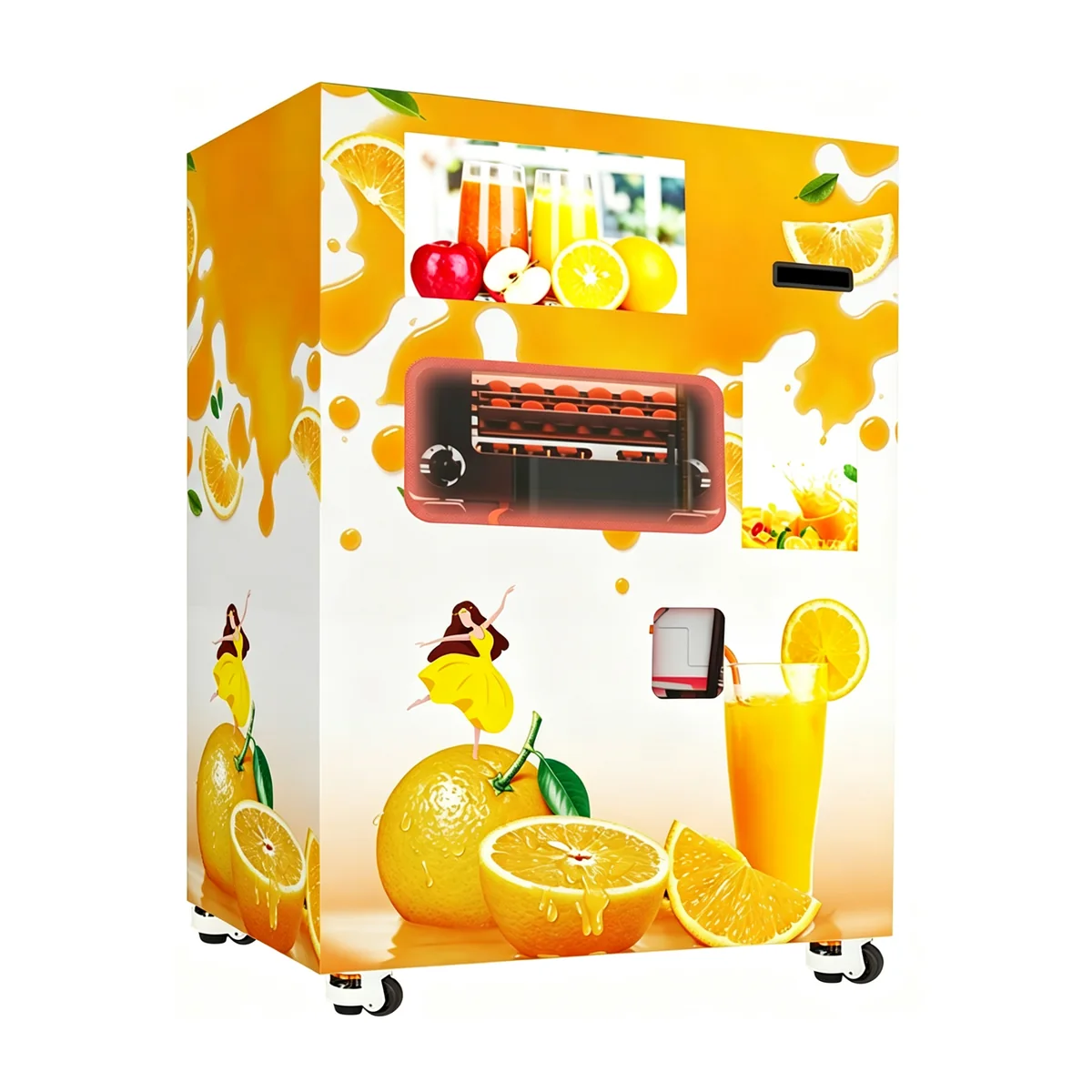

Apple & Orange 2-in-1 Juice Vending Machine
A mixed-fruit vending platform designed around orange and an approved second-fruit configuration. The exact fruit combination, display setup and payment hardware are confirmed for each project.
- 50-60 kg reference fruit storage
- Approximately 80-100 cups at full load
- 15.6-inch touch display with optional 21.5-inch advertising screen
Configuration
A flexible mixed-fruit platform for automated retail
The VB1 source configuration combines mixed-fruit vending, a 15.6-inch touch interface and optional advertising display. Confirm the intended fruits, preparation setup and consumables before the final machine is quoted.
Mixed-fruit configuration
The source lists orange with apple, pear or tomato combinations. The approved fruit pair and recipe are confirmed per order.
Display options
A 15.6-inch capacitive touch display is listed, with a 21.5-inch advertising screen available as an option.
Payment configuration
Cash and cashless options can be configured. Confirm the exact validator, terminal and local acquiring requirements before quotation.
Fruit capacity
Reference storage is 50-60 kg, approximately 250-280 pieces depending on the selected fruit size and mix.
Site planning
Confirm access width, floor loading, utilities, replenishment and cleaning workflow for the intended location.
Exterior finish
Surface graphics can be developed for the buyer’s brand after the machine and artwork scope are approved.
Technical overview
VB1 reference specifications
- Model
- VB1
- Dimensions (W × D × H)
- 1200 × 910 × 1960 mm
- Voltage
- 220 VAC / 50 Hz
- Power (maximum / rated)
- 800 W / 300 W
- Daily power consumption
- 3-7 kWh reference
- Displays
- 15.6-inch touch screen; optional 21.5-inch advertising screen
- Fruit storage
- 50-60 kg; approximately 250-280 pieces
- Cups at full load
- Approximately 80-100
- Fruit configuration
- Orange with approved apple, pear or tomato configuration
- Net / gross weight
- 400 / 430 kg
- Packing dimensions
- 1300 × 1000 × 2000 mm
- Reference container loading
- 20GP: 10 sets; 40GP: 21 sets
Specifications are reference data for the source configuration and may change. Final fruit setup, included equipment, specifications and trade terms are confirmed in the quotation and contract.
Deployment planning
Confirm the product and site before final configuration
Potential locations include retail centers, campuses, transport facilities, office sites, fitness venues and leisure locations. Suitability depends on the selected fruits, utilities, local food rules, cleaning procedures, replenishment access and expected customer flow.
Configure the VB1 for your market
Tell us the destination country, fruit combination, installation environment, payment requirements and expected quantity. We will prepare a project-specific configuration and quotation.
